… a smooth operation with each model of this range. Easy maintenance and service works are additional features of this attachment. The compactors provide for an efficient and high compacting performance thanks to their large compactor plates and high impulse energy.

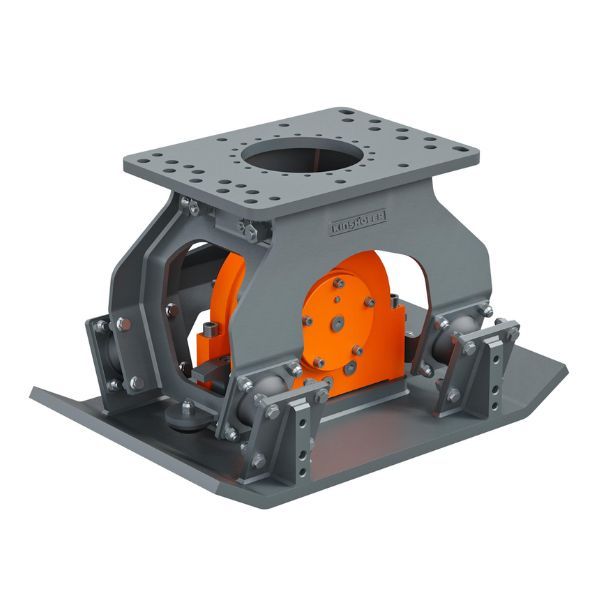

The characteristics of the compactor plates KHC:
High quality motors and materials guarantee …… a smooth operation with each model of this range.
Easy maintenance and service works are additional features of this attachment.
The compactors provide for an efficient and high compacting performance thanks to their large compactor plates and high impulse energy.
Ideal also in combination with a
NOX Tiltrotator for excavators with 4 to 20 t / 8,800 to 44,000 lbs operating weight.
- Long service life with low maintenance costs.
- High impulse energy thanks to the use of powerful high quality motors.
- Motor protected behind bolt-on side plate.
- Includes: bolt-on compactor plate extension 95 mm/3.7 in, 100 mm/3.9 in or 125 mm/4.9 in on both sides.
- Compacting surface: 0.23 (+0.11) m2/2.4 (+1.1) ft2, 0.4 (+0.13) m2/4.3 (+1.4) ft2 or 0.54 (+0.17) m2/5.8 (+1.8) ft2.
- Adapters for different quick coupling systems available.
- LF-version with lower required pump capacity, e.g. when used with a tiltrotator.
- Integrated flow limitation and suction valves to prevent hydraulic overload.
